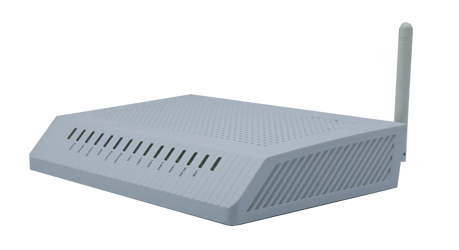

ONT C624WFB

ONT C624WFB

4 x 10/100Base-Tx ports
2 x FXS ports for VoIP
IEEE 802.11 b/g/n WiFi
Intenna + Antenna (MIMO)

C624WFB is the GPON ONT designed for advanced triple-play service deployments. It supports QoS enabled features including VoIP and multicast video application on top of high speed internet access via either UTP line or WiFi interfaces.

C624WFB ONT is ideal for triple-play service deployments in FTTH/FTTB architecture. Industry standard SIP voice signaling provides reliable voice services. The four Fast-Ethernet ports can be separated into different services allowing the configuration of dedicated ports for IP video and data.

Compliant with standard OMCI definition, C624WFB is manageable from remote site and supports the full range FCAPS functions including supervision, monitoring and maintenance.

Hardware

Key Components / Connectors / Performance
Flash Memory	16M Bytes (MAX support 256MB)
SDRAM for CPU	64M Bytes (DDR2 ,MAX support 2Gbit)
Console	Internal console port (4 pin)
LAN	4x 10/100/1000Base-TX MDI/MDIX RJ-45 port compliant with following standards: 1. IEEE 802.3/802.3u 2. Hardware based 10/100/1000, full/half, flow control auto negotiation 3. Non-blocking wire speed reception and transmission 4. Full duplex IEEE 802.3x flow control and half duplex back-pressure flow control 5. Broadcast storm protection 6. Automatic address learning, address aging and address migration 7. Integrated address Look-Up Engine, 1 K absolute MAC addresses supported
WAN	1x inner GPON port Data Rate: Downstream: up to 2.4Gbps; Upstream: up to 1.2Gbps Down wavelength: 1490 nm Up wavelength: 1310 nm Maximum transmission distance: 20 Km

Software

Feature Item	Feature	Detailed Description
GPON Compliance	ITU-T G.984.1, G.984.2, G.984.3, G.984.4
	Fully ITU-T G.984 compliant framing
	Support 8 T-CONTS and 32 GEM Ports
	Multiple T-CONTs per device Multiple GEM Ports per device
	Flexible mapping between GEM Ports and T-CONT
	Activation with automatic discovered SN
	and password in conformance with
	ITU-T G.988
	AES-128 Decryption with key generation and switching
	FEC (Forward Error Correction)
	DBA reporting in status indications in the PLOu, and by piggyback reports in the DBRu (mode 0)
	802.1p service mapping profile on U/S
	Mapping of GEM Ports into a T-CONT with priority queues based scheduling
	Support for Multicast GEM Port
Network Protocol	802.1q/1p VLAN over RFC2684 bridge encapsulation
	PPPoE	Support AUTO, PAP, CHAP, MS-CHAP authentication. Auto or static IP address assignment.
	PPPoE passthrough	Supports concurrent PPPoE clients inside the modem and PPPoE clients on the LAN devices.
	PPPoE filtering of non-PPPoE packets between WAN and LAN	Support filtered non-PPPoE packets.
	Auto clean up of remote stalled PPP sessions at BRAS
	Transparent bridging between all LAN and WAN interfaces
	WAN to WAN blocking in bridge mode
	Ethernet as WAN
Networking	Full Cone NAT
Networking	DMZ Host
ALGs	FTP
	TFTP
	RTSP
	Port Triggering
	PPTP
	IPSec and L2TP
Firewall/Filtering	Stateful Inspection
	Packet filtering	Packets can be blocked based on interface, mac address, IP address, protocol, and port number.
	LAN side firewall	By default, LAN side firewall is disabled
Parental Control	Time of day usage restriction
Parental Control	URL Filtering	Supports INCLUDE and EXCLUDE modes
QoS	IP/Bridge/802.1p
	Rate Control on upstream traffic
	Support SP, WRR
Routing	RIP v1/v2	Enable RIP over multiple WAN interfaces
Routing	Policy Routing	Routes packets based on criteria other than destination IP address
IGMP	Proxy and snooping
IGMP	IGMP v2 and v3
MLD
IPv6	IPv6 Ready Logo Certified
	IPv6 Firewall
	IPv6 capable apps	telnetd, ftpd, sshd, httpd
USB	USB 2.0 “Host” Driver USB 2.0
	USB storage
	Access to mounted USB disk via FTP
DHCP Server	Support for multiple subnets
	Static IP lease
	DHCP relay
DHCP client
LAN services	Second IP address on LAN interface
DNS Proxy	Built in DNS server
DNS Proxy	Caching previous requests
ACL
WebUI	Protection against Cross Site Request Forgery attack
TR‐069	Digest Authentication, SSL and Basic Authentication, SSL and Authentication Digest
	Auto‐launch and exit‐on‐idle
	TR‐098
	TR‐098 profile support
	TR‐111 (part 1)
	TR‐140
	TR‐104
TR‐064
SNMP	v1/v2c agent
SNMP	MIB‐II
UPnP	Internet Gateway Device (IGDv1.0) Finite(24 hour) duration of virtual server entries created using UPnP
Security	Three level login(local admin, local user, remote support)
	Service access based on incoming interface and/or source IP address
	Automatic logout from CLI after inactivity
Audit and Logging	Send log to remote syslog server
Diagnostics	Interface Connectivity	Ethernet and USB.
Diagnostics	Internet Connectivity	ISP authentication, assigned IP address, default gateway/primary DNS server connectivity
Other Features	Dynamic DNS
	sntp time synchronization
	telnetD
	Power Management
WIFI Compliance	IEEE 802.11b/g/n
	Support 2x2 antennas
	Support 2-stream spatial multiplexing up to 270Mbps	(Can upgrade to 300Mbps)
	Support MCS 0-15 and MCS 32 modulation and coding rates channels
	Support 20M and 40M
	WEP encryption	Support 64, 128 Bit WEP encryption
Voip	802.1x
	WPA/WPA2
	WPA-PSK/WPA2-PSK
	Mac Filter base on each SSID
	Multiple SSID	Up to 4 SSID Support SSID hidden
	Support SSID hidden
	SSID User Isolation
	WPS	WPS Push and WPS PIN method supported Housing WPS push button (optional)
	Enable or disable WIFI through GUI
	SIP/ MGCP/ H.248 Protocols	Support SIP or MGCP Protocols
	FXS	Support 2 FXS
	RTP ( RFC 1889)/ RTCP ( RFC 1890)
	UDP ( RFC 768)
	SDP ( RFC 2327)
	Outbound Proxy
	Multiple voice codec - G.711 (u/a-law), G.726, G.729 (A and B), G.723.1 etc
	T.30 and T.38 Fax
	DTMF In band & Out of bandTone Detection & generation (RFC2833)
	Echo Cancelling, Silence suppression, VAD, CNG
	Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.
