P3608FG

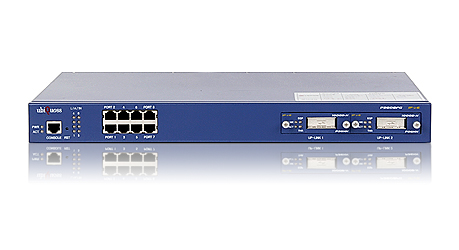

L2 Switch P3608FG

08 fixed 10/100Base-TX ports
1 Port per Option Module
100Base-FX, 1000Base-X (GBIC), 1000Base-TX
RS-232C Serial Port (RJ-45 type)

Premier 3608FG switch is a Metro Ethernet based work group L2 switch being used in the segment of access network and providing broadband multimedia service. It is suitable for connecting directly to subscriber’s terminal, aggregation switch or IP DSLAM so that high performance switching service can be implemented economically based upon 10/100Mbps link speed. As one of the preparation for the future network enhancement, Premier 3608FG is designed to support IPv6. So it can be easily adapted to IPv6 network environment. Because it can support wire-speed switching function and various services, Premier 3608FG is the most appropriate solution for the medium size networks which generates high traffic volumes. Premier 3608FG also has the advanced network management functions and switching functions that follow world standard.

Premier 3608FG can have eight(8) 10/100base-TX (UTP) ports and two optional modules which can carry either up to two 100Base-FX ports , 1000Base-T or 1000Base-X ports. All ports of Premier 3608FG switch support full duplex communication. Because full duplex communication type allows the both directions of traffic to flow at the same time, the link bandwidth can be effectively extended twice.

Premier 3608FG adopts a high speed non-blocking switch fabric. This chipset makes internal delay as little as possible by processing the arriving packets in parallel manner. And it maximizes data integrity through Store-and-Forward switching method. In other words every packet that arrives at any port will be stored in the buffer of the port and checked up for integrity before transferred to destination port. Therefore it can prevent some data error from being spread over the network.

Premier 3608FG supports IPv6, hardware-based bandwidth management and Quality of Service functionality, which enables corporate users and ISPs to provide differentiated internet services in the environment of next generation network.

Hardware Specification - Premier 3608FG
System Architecture	08 fixed 10/100Base-TX ports (Auto-negotiation, Auto-Sensing, Auto MDI/MDIX) 2 Expansion Module : 1 Port per Option Module 100Base-FX, 1000Base-X (GBIC), 1000Base-TX RS-232C Serial Port (RJ-45 type)

Memory	64MB Main Memory 16MB Flash Memory

Physical Dimension	19” Rack Mount Type 44mm(H) x 482.6mm(W) x 260mm(D) Max 4Kg


Environment Conditions
Input Voltage and Frequency	110 ~ 220 VAC / 50~60 Hz, -44 ~ -52 VDC

Power Consumption	16.64W maximum

Operating Temperature	0 ~ 50℃

Storage Temperature	-20 ~ 60℃


Performance
Switching Fabric	5.6 Gbps non-blocking

Throughput	8.3 Mpps wire-speed L2 Switching


Capacity
MAC Address	Up to 16K MAC Management

VLAN	Up to 256 VLAN Private Edge VLAN, 8021.Q Tag Vlan (Max 256 Tag Vlan) Link Aggregation (802.3ad) : 13 group, Max 8 port/group


Services and Features
Security & Filtering & QoS	IEEE 802.1p QoS, Diff-serv support Congestion Management Filtering : Mac address, Mac address Count 제한, Netbios, NBT, DHCP, Broadcast Storm, 특정 IP 확인제어, IP Packet filtering, IP 충돌 감지, IP Sub-network 대역 차단 기능 Virus Filtering : DoS prevention, Warm virus Filtering Subscriber Traffic control by ACLs (Access Control Lists)

Bandwidth Management	Hardware-based Rate Limiting Rate Limiting : 1Mbps per Ethernet port Rate Limiting : 1Mbps per Gigabit port Egress Traffic Shaping per Port Ingress Traffic Policing per Flow/Packet Hardware Based Symmetric & Asymmetric Rate Limiting

Management	SNMP v1/v2, RMON, MIB-I/II Remote S/W Upgrade, Telnet, TFTP, FTP, Port Mirroring CLI, Syslog, 관리자 권한 제어기능, RADIUS

Functions	STP(802.1D), RSTP(802.1w) DHCP relay/DHCP snooping NTP (Network Time protocol) Client Jumbo Frame packet support : 9022byte Stacking & IP Clustering : Max 8 Stacking

Multicasting Protocol	IGMP v2.0, IGMP snooping, IGMP proxy-reporting


Standards
IEEE Standards	802.1D Spanning Tree Protocol 802.1w RSTP 802.1p Priority Control 802.1Q VLAN 802.3 10Base-T Ethernet	802.3u 100Base-X Fast Ethernet 802.3x Flow Control 802.3ad Link Aggregation 802.3z 1000Base-X Gigabit Ethernet

IETF Standards	RFC 768 UDP RFC 791 IP RFC 903 TCP	RFC 2131 DHCP Relay RFC 2236 IGMP v2 RFC 1112 IGMP

Management Standards & MIB	RFC 783 TFTP RFC 854 Telnet RFC 1157 SNMP v1 RFC 1213 MIB-I I RFC 1493 Bridge-MIB	RFC 1757 RMON-MIB RFC 1902 SNMP v2 RFC 1907 SNMP-MIB RFC 1643 Ethernet-like Internet MIB
