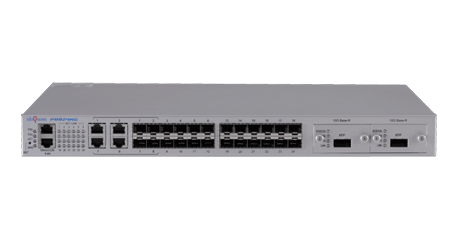

P8824XG

P8824XG is a Gigabit L3 switch that delivers remarkable efficiency and reliability for robust switching at the CO aggregation or enterprise network edge. It is furnished with IPv6, routing, multicasting, QoS (Quality of Service) functions suitable for IP-TV, mission critical data, and voice services.

Considering the connection possibility with existing device which have RJ-45 type connectors, P8824XG supports 4-Ports of 10/100/1000 Base-T interface as Combo Type. It basically has 24-Ports 1000 Base-X and optionally 2-Ports of 10G base-R (XFP type).  Especially, in case of GBIC or Fx Module, the capacity expansion can be achieved by unit of port so that it can be helpful for scalable augmentation.

All 24 ports of the switch are managed en bloc for efficiency, including power module insertion/extraction and Cisco-like CLI.

P8824XG is a 1U-sized switch applied for spatial efficiency and easy installation. System stability is optimized by supporting hardware based distributed switching and hot-swapping for each module, and system extension while operating is carried out without service interruption.

P8824XG makes use of high-speed non-blocking switch fabric.  It also supports bandwidth management and QoS; therefore, service providers can offer differentiated IP services corresponding to applied service or SLA (Service Level Agreement).  P8824XG’s hardware-based multi-routing protocols provide never-before-seen functions among existing software-based routers.  Finally, IPv6 service further improves the switch’s quality with increased security and network extensibility.

Scalable interface

Ÿ   Up to 24 Ports of SFP type Gigabit Ethernet Switch along with 4 100/1000Base-T Combo ports

Ÿ   2 slots for 10G Base-R interface module for Expansion

Redundant Power for HA

Ÿ   Module Type of Power Supply Unit

Ÿ   Dual configuration with either AC or DC

Ÿ   Hot swapping enabled for continuous operation

QoS feature

Ÿ   EEE 802.1p QoS, ToS, Diff-serv support

Ÿ   Congestion Management

Ÿ   Subscriber Traffic control by ACLs (Access Control Lists)

Ÿ   Hardware-based Rate Limiting

Ÿ   Rate Limiting: 1Mbps per Gigabit port

Ÿ   Egress Traffic Shaping per Port

Ÿ   Ingress Traffic Policing per Flow/Packet

Ÿ   Hardware Based Symmetric & Asymmetric Rate Limiting

L2 switching capability

Ÿ   Max. 4K VLAN

Ÿ   Private VLAN, 802.1Q Tag VLAN (Max 4K Tag VLAN)

Ÿ   Link Aggregation (802.3ad): 13 group, Max 8port/group

Ÿ   802.1v protocol base VLAN, VMAN(Ether9100, Q-in-Q)

Ÿ   Max. 32K MAC Management

Ÿ   STP(802.1D), RSTP(802.1w), PVSTP

Ÿ   NAT

Ÿ   DHCP server & relay

Ÿ   NTP (Network Time protocol) server & Client

Ÿ   Jumbo Frame packet support: 10290byte (Giga)

L3 routing ability

Ÿ   RIP v1/v2, OSPF v2, BGP v4, Static

Ÿ   Default gateway, Multiple Default gateway

Ÿ   Loop-back interface, VRRP

Ÿ   IGMP v1, v2, v3, IGMP snooping, IGMP snooping fast leave,

Ÿ   IGMP snooping suppression, IGMP proxy

Ÿ   PIM-SM, PIM-SSM

Security

Ÿ   IEEE 802.1x support

Ÿ   Filtering: Mac address, Mac address Count limit, Netbios, NBT,

Ÿ   DHCP, Broadcast Storm, specific IP confirmation control, IP Packet

Ÿ   Filtering, IP collision detection, IP Sub-network bandwidth blocking

Ÿ   Virus Filtering: DoS prevention, Warm virus Filtering

Ÿ   RADIUS, TACACS+, SSH

Management facility

Ÿ   SNMP v1/v2, RMON, MIB-I/II

Ÿ   sFlow, tcpDump

Ÿ   Remote S/W Upgrade, Telnet, TFTP, FTP

Ÿ   Port Mirroring

Ÿ   CLI, Syslog, manager authority control function

Applications

Ÿ   High-speed & high-capacity service for communication enterprises

Ÿ   High-speed Internet service and intra-network environment for business and house subscribers

Ÿ   Client-Server Network

Ÿ   IPv6, routing, multicasting & QoS for IP-TV & TPS service

Ÿ   Differentiated IP services corresponding to applied service or SLA (Service Level Agreement).
