High speed and high capacity service for service providers
Optimized solution for service providers to process high-capacity traffics at high speed
Long distance connection based on various optical interfaces
Various network topology such as Tree or Ring etc
48Gbps Non-Blocking Switch Fabric, Max. 36Mpps throughput
24port Giga Combo type: 24port 10/100/1000Base-TX and 24 SFP port
24 SFP port: Auto detection of 100Base-FX SFP and 1000Base-X SFP GBIC, Combination of 100M and Giga through Hot-Swapping function
Stable hardware-based Wire-speed switching and routing
The function module for switching and routing is implemented in hardware
All the ports support wire-speed Ethernet packing transmission at Layer 2/3
Layer 3 switching network structure with routing protocol built-in
Performs Layer 3 switching for the communication inside internal LAN segment
Wire-speed Internet Protocol(IP) switching and routing
- RIP (Routing Information Protocol), OSPF (Open Shortest Path First), Static route, Default gateway, Multiple-default gateway, Loopback interface, BGP4 (Boarder Gateway Protocol), VRRP
Wire-speed IP multicast routing
- Increase the transmission efficiency by preventing unnecessary broadcasting through IGMP (Internet Group Multicast Protocol) Snooping.
Hardware routing table
Bandwidth Management
Limits and guarantees subscriber traffic by SLA (Service Level Agreement) agreed upon subscription by 1Mpbs(Gigabit Port)
Performs bandwidth management based on hardware to minimize internal delay
Performs bandwidth limiting without affecting switching and routing performance
Symmetric & Asymmetric Bandwidth Management
Traffic Shaping per port
VLAN (Virtual Local Area Network, IEEE 802.1Q)
VLAN function complying to International standards
Max. 4K VLAN supported
VLAN Trunking that assigns several VLAN to a port
Supports Tagged VLAN
STP (Spanning Tree Protocol, IEEE 802.1D)
Layer 2 STP complying with international standards
Fast recovery upon problems through enhanced STP performance (RSTP : rapid STP, 802.1w)
Supports PVST (Per VLAN STP)
Policy-based Quality of Service (QoS)
Various Traffic Classification (IEEE 802.1p)
Defines in/out bandwidth for each user(IP, port)
Defines bandwidth of max. 1,000 IP address or users
Allows administrator to monitor traffics specified in the Traffic Classification
Provides data to the monitoring equipment or self monitoring
Monitoring of traffics that employees are using without letting them know about it
Abnormal traffic detection
ToS, Diff-Serv, QoS through various Priority Control
Reliable network security through packet filtering and ACL
Limits to allow only the users from specific IP addresses to access for unauthorized access blocking and operation management
In/Out access control and permit for each IP user
In/Out access control or permit for each port/application
Limiting Source IP addresses
DoS Attack Filtering
Adjustment of packets in Well-Known ports upon DoS Attack
Self alarming upon the occurrence of traffic and CPU load limit
Management functions(Telnet, SNMP) in case of increase of load
Notify of unauthorized access by displaying a banner of warning etc
Vista LLTD(Link Layer Topology Discovery) blocking
Filtering: Mac address, Mac address Count limit, Netbios, NBT, DHCP, Bradcast Storm, IP Packet filtering, IP collision detection, IP sub-network band blocking, specific IP check and control
Various additional features
Port trunking
- Supports port trunking up to 8 of the ports that use same in/out interface device
- Load Balancing for multiple trunking ports
Link Aggregation(IEEE 802.3ad)
DHCP (Dynamic Host Configuration Protocol) Server/Relay
- No need to deploy additional server for DHCP service
- Flexible IP management for each network by setting specific IP address range
- Minimize IP address assignment error through DHCP service
- DAI function: ARP modulation attack blocking, DHCP Snooping
Broadcast Storm Filtering
NAT(Network Address Translation)
NTP(Network Time Protocol)
Power redundancy for stable power supply
Fast and convenient system configuration and operation
Fast Cold booting that performs initial operation function
System OS upgrade through TFTP, FTP and Flash
Operation management familiar and convenient to operator
CLI alike a Cisco product
local and remote system management through Telnet
Auto software upgrade from remote site
Auto recovery of settings upon rebooting
Syslog for stable operation management and diagnosis
SNMP I/ II agent, RMON function for stable operation management and creation of statistics data by external network management
Monitor traffics in a specific port through Port Mirroring
Jumbo Frame packet: 9022byte(100M port), 10290byte(Gigabit port)
Redundancy, attachable/detachable, hot swappable design of power module for seamless system maintenance
Modular FAN that can be attached/detached for convenient maintenance |

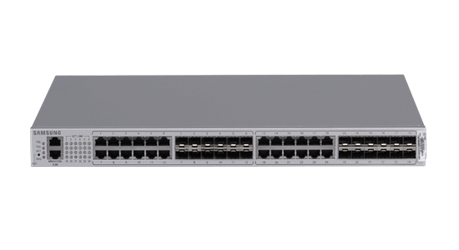

P8424FG
