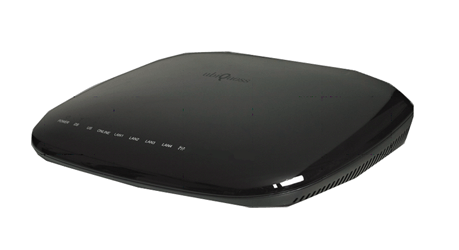

C604GR is the RF featured GPON Optical Network Terminal which comprises of 1 RF video port and 4 Gigabit Ethernet (UTP, RJ45) ports as its service interfaces. It provides subscriber with high performance, individualized, and feature rich services including video (IPTV), voice, high speed internet and CATV analog video service. It is connected to GPON OLT and RN (Remote Node) via a fiber optic cable to provide TPS (Triple Play Service) and digitalized RF signal.
C604R basically operates at bridge mode providing complimentary features like Q-in-Q, VLAN translation, VLAN trunking and VLAN tagging/detagging per Ethernet port which will give network operator versatility to construct network per its own requirement. Besides, the OAM features based upon standard compliant OMCI facilitate more convenient and effective network operation.
|
|
ITU-T G.984 GPON compliant
4 Ethernet LAN ports supported 10/100/1000Base-T ports
RF video port(Coaxial F-Connector) for CATV
Bridge Mode
OMCI
DHCP Server / NAT / NAPT
QoS, CoS
Dying Gasp support
-10℃~60℃ Operating Temperature
5% ~ 95% Humidity(Non-Condensing)
FCC/ UL/ ETSL Certified
|
|
Item |
Description |
|
SYSTEM HW ARCHITECTURE |
4 Port 10/100/1000 Base-T Ethernet data interfaces
Ethernet port auto negotiation or manual configuration
MDI/MDIX automatic sensing
One coaxial interface (54Mhz–1GHz Frequency Range)
AC Adapter input 100 ~ 240 volts, 50/60 Hz
Power Input 12V, 1.5A (feed via external AC/DC adapter)
215mm(W) x 160mm(D) x 44mm(H) SFU-Type Dimension
-10℃~60℃ (32℉~140 ℉) Operating Temperature
Dying Gasp support |
|
NETWORK FEATURES |
Bridge Mode Support
256 MAC address and 16 VLAN group
VLAN stacking (Q-in-Q), VLAN translation, VLAN trunking
VLAN tagging/detagging per Ethernet port
IGMP v2/v3 snooping |
|
PON FEATURES |
ITU-T G.984 GPON compliant (984.1/.2/.3/.4)
Single fiber, integrated triplexer transceiver
Compliant to FSAN G.984.2 specifications
Data/Video FTTx ONT/ONU applications
1310nm Tx, 1490nm Rx, 1555nm video Rx
1244Mbps Tx / 2488Mbps Rx asymmetric data rate
Received Optical Power Min: -28dBm ~ -8dBm
Burst mode upstream transmission
Extinction Ratio: Min 10dB
Average Optical Output Power: Min 0.5dBm ~ 5dBm
870MHz video bandwidth
20km reach
GR-468-CORE compliant SC/APC connector
Multiple T-CONTs, Multiple Port-IDs
NSR/SR DBA
Upstream and Downstream FEC
AES-128 decryption
512 Port-Ids
8 Transmission Container
Maximum 2.488 Gbps Downlink/1.244 Gbps Uplink |
|
RFoG Specification |
Frequency Range: Min 54MHz – Max 870MHz
Receiver Wavelength: Min 1540nm – Max 1560nm
Received Average Optical Power: Min -8dBm – Max 2dBm
RF Output Level : Min 18dBmV/ch
RF Output Impedance : 75 Ohm |
|
QoS / Security FEATURES |
IP ToS/DSCP to 802.1p mapping
CoS based on VLAN-ID, 802.1p bit, ToS/DSCP
Marking/remarking of 802.1p
QoS Support with 4-traffic classed based on arrival port, IEEE802.1p, Ipv4 TOS
Mac Address Limit for Mac Spoofing Attack
Static Mac Address |
|
OAM |
Standards-compliant OMCI as defined in ITU-T G.984.4 and G.983.2
Management Information Base (MIB) manipulation over OMCI by Create, Delete, Set, Get and Get Next commands
Provisioning for all services including Ethernet, IPTV, etc.
Alarming and AVC report, performance monitoring
Remote image download over OMCI, as well as activation and rebooting
Holds two F/W banks for image integrity and rollback | |
