P3424GP is an L2 switch devised as a GPON MDU providing FTTx broadband multimedia service. With its rack mount design and ease of installation, the P3424GP provides a cost effective way in supporting broadband connection to end users. When the switch is equipped with PON(passive optical network) expansion module, the reach distance of uplinks can be from 10Km up to 20Km. Besides the PON expansion module P3424GP can also have optional 2-port 1000BASE-X module or optional 100/1000BASE-TX for the active optical network connectivity. The qualities of service features facilitate the deployment of triple play services such as VoIP, IPTV, and high-speed internet access as much as desirable.
As one of the preparation for the future network enhancement, Premier 3424GP is designed to support IPv6 and is capable of adapt itself to IPv6 network environment easily. The P3424GP supports comprehensive OAM functions for remote administration with SNMP v1/v2/v3 and provides easy-to-use management interface of Cisco-alike CLI through the Telnet and console. |
|
Up to 24 10/100Base-TX ports (Fixed)
2 Option Module Slots: GPON module along with 100Base-FX, 1000Base-Tx and 1000Base-X
Fully compliant of G.984.x set of standards
Power : AC/DC
12.8 Gbps Non-Blocking Switch Fabric
Max 6.5 Mpps L2 Switching, 64MB Main Memory, 16MB Flash Memory
Up to 16K MAC Address Support for Switching
Up to 256 VLANs Support
Filtering : DHCP, NetBios, NBT, Mac, Broadcast Storm, IP Packet Filtering, IP-Subnetwork range blocking, Selective handling of specified IP address, Detection of IP
address collision
Secure Network : DoS prevention, Warm virus Filtering
IEEE 802.1p, IEEE802.1Q, IEEE802.1D, IEEE802.3x
Rate Limit : @ 1Mbps (100M & Gigabit port)
Egress Traffic Shaping (Rate Limit) per Port
Ingress Traffic policing per flow/packet
VLAN, Multi VLAN, STP, RSTP, IGMP snooping & query
Port Trunking, Link Aggregation(802.3ad), Port enable/disable, Stacking
TFTP, CLI, Telnet, Syslog, SNMPⅠ/Ⅱ, RMON, Port Mirroring.
Hardware based IPv6 |
|
P3424GP Specification |
|
System Architecture
&
Console |
24 fixed 10/100Base-TX ports
(Auto-negotiation, Auto-Sensing, Auto MDI/MDIX)
2 Expansion Module for uplink
RS-232C Serial Port (RJ-45 type) |
|
UP Link Interface |
GPON Optical Interface
10/100BASE-TX (RJ-45)
1000BASE-TX (RJ-45)
1000BASE-SX (SC Type)
1000BASE-LX (SC Type)
1000BASE-LH (SC Type)
100BASE-FX (SC Type) |
|
Memory |
64MB Main Memory
16MB Flash Memory |
|
Physical Dimension |
19” Rack Mount Type
44mm(H)x482.6mm(W)x260mm(D)
Max 4Kg |
|
Environment Conditions |
|
Power |
AC, DC |
|
Input power and frequency |
110~220 VAC / 50~60 Hz, -44 ~ -52 VDC |
|
Power consumption |
Max 16.64 W |
|
Operating temperature |
0℃~ +50℃ |
|
Storage temperature |
-20℃~ +60℃ |
|
Performance |
|
Switching Fabric |
12.8 Gbps non-blocking |
|
Throughput |
6.5 Mpps wire-speed L2 Switching |
|
IPv6 |
Enabled |
|
Capacity |
|
MAC Address |
Up to 16K MAC Management |
|
VLAN |
Up to 256 VLAN
Private Edge VLAN, 802.1Q Tag Vlan (Max 256 Tag Vlan)
Link Aggregation (802.3ad) : 13 group, Max 8 port/group |
|
Services and Features |
|
Filtering, Security & QoS |
IEEE 802.1p QoS, Diff-serv support
Congestion Management
Filtering : Mac address, Mac address Count limit, Netbios, NBT, DHCP, Broadcast Storm, Selective handling of specified IP address, IP Packet filtering, Detection of IP address collision, IP Sub-network range blocking
Virus Filtering : DoS prevention, Warm virus Filtering
Subscriber Traffic control by ACLs (Access Control Lists) |
|
Bandwidth Management |
Hardware-based Rate Limiting
Rate Limiting : 1Mbps per Ethernet port
Rate Limiting : 1Mbps per Gigabit port
Egress Traffic Shaping per Port
Ingress Traffic Policing per Flow/Packet
Hardware Based Symmetric & Asymmetric Rate Limiting |
|
Management |
SNMP v1/v2, RMON, MIB-I/II
Remote S/W Upgrade, Telnet, TFTP, FTP, Port Mirroring
CLI, Syslog, Access level control for administrator,
RADIUS |
|
Functions |
STP(802.1D), RSTP(802.1w)
DHCP relay/DHCP snooping
NTP (Network Time protocol) Client
Jumbo Frame packet support : 9022byte
Stacking & IP Clustering : Max 8 Stacking |
|
Multicasting Protocol |
IGMP v2.0,
IGMP snooping, IGMP proxy-reporting |
|
Standards |
|
IEEE Standards |
802.1D Spanning Tree Protocol
802.1w RSTP
802.1p Priority Control
802.1Q VLAN
802.3 10Base-T Ethernet
802.3u 100Base-X Fast Ethernet
802.3x Flow Control
802.3ad Link Aggregation
802.3z 1000Base-X Gigabit Ethernet |
|
IETF Standards |
RFC 768 UDP
RFC 791 IP
RFC 903 TCP
RFC 2131 DHCP Relay
RFC 2236 IGMP v2
RFC 1112 IGMP |
|
Management Standards
& MIB |
RFC 783 TFTP
RFC 854 Telnet
RFC 1157 SNMP v1
RFC 1213 MIB-I I
RFC 1493 Bridge-MIB
RFC 1757 RMON-MIB
RFC 1902 SNMP v2
RFC 1907 SNMP-MIB
RFC 1643 Ethernet-like Internet MIB |
|
ITU Standards |
G.984.1: General characteristics for Gigabit-capable Passive Optical Networks (GPON)
G.984.2: Gigabit-capable Passive Optical Networks (GPON): Physical Media Dependent (PMD) layer specification
G.984.3: Gigabit-capable Passive Optical Networks (G PON): Transmission convergence layer specification G.984.3 | |

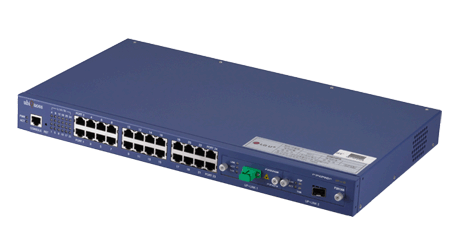

ONU P3424GP
