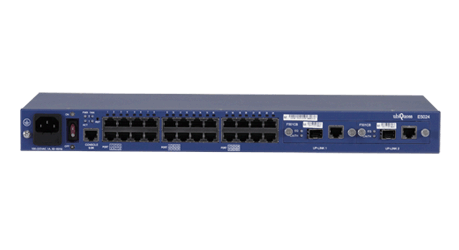

ONU E5024

E5024 is an Gigabit Ethernet L2 switch devised as a GEPON MDU providing high-speed high-capacity broadband multimedia service of up to 1Gbps.  E5024 can be applied to FTTB or FTTC based network users enabling high performance switching service economically by using of 1000Mbps link speed.

E5024 can have up to twenty-four 1000base-T (UTP RJ-45) ports and two optional modules that support either up to two GEPON ports as well as 1000Base-T or 1000Base-X /100Base-FX (SFP) ports.

Besides LAN switching functionalitis, E5024 also provides QoS and multicasting and has increased the level of security with 802.1x.

E5024 is capable of supporting IPv6, hardware-based bandwidth management and Quality of Service functionality, which enable corporate users and ISPs to provide differentiated internet services in the environment of next generation network.

Ÿ  24 ports 1000Base-T (Fixed)

Ÿ  2 Optional Slot Uplink Module(Hot-Swappable) : 100Base-FX, 1000Base-Tx, 1000Base-X

Ÿ  Uplink Module

-       1 port Combo : 100Base-FX/1000Base-X (SFP) or 1000Base-T (RJ-45)

-       1 port EPON 1.25G

Ÿ  Power: 110~220 VAC / 50~60 Hz

Ÿ  56Gbps Non-Blocking Switch Fabric

Ÿ  38Mpps Throughput

Ÿ  128MB Main Memory, 32MB Flash Memory

Ÿ  Max. 16K MAC Address Support for Switching

Ÿ  256 VLANs Support

Ÿ  Filtering: DHCP, NetBios, NBT, Mac, IP Packet Filtering, IP-Subnetwork range blocking, Selective handling of specified IP address, Detection of IP address collision

Ÿ  Alert when traffic/CPU load threshold reached

Ÿ  MAC address falsification & flooding prevention (static MAC, MAC count)

Ÿ  Multicast/broadcast flooding prevention (broadband controlled & auto-lift after a period of time)

Ÿ  Secure Network: DoS prevention, Warm virus Filtering

Ÿ  IEEE 802.1p, IEEE802.1Q, IEEE802.1D

Ÿ  Rate Limit: @ 1Mbps (100M & Gigabit port)

Ÿ  Egress Traffic Shaping (Rate Limit) per port

Ÿ  Ingress Traffic Policing per flow/packet

Ÿ  VLAN, Multi VLAN, STP, RSTP, IGMP snooping & query

Ÿ  Max. 128 ACL for QoS standards and filtering

Ÿ  Gateway IP Address Resolution Protocol (GARP)

Ÿ  IGMP v1/v2, IGMP Snooping, IGMP Snooping Proxy Reporting supported

Ÿ  SNMP trap for up/down linking and system initialization

Ÿ  TFTP, CLI, Telnet, Syslog, SNMP I/II, RMON, Port Mirroring

Ÿ  Hardware based IPv6
