E3208E is a Fast Ethernet L2 switch used in access network segments to provide broadband multimedia service. It can provide high performance switching service to subscribers. It can be also deployed economically because it is based on 100Mbps downlink speed as FE and an uplink port as GE-PON.
E3208E is the best solution for medium size networks with high traffic volumes. E3208E also provides advanced network management and switching functions that follow the world standard. E3208E consists of eight FE ports and one Uplink module as GE-PON port. |
|
8 ports 100Base-TX (Fixed)
Uplink : 1-port EPON 1.25G
Power: 110~220 VAC / 50~60 Hz
12.8Gbps Switching Capacity
1.19Mpps throughput
Max. 16K MAC Address Support for Switching
256 VLANs Support (VLAN ID range 1 ~ 4094)
Filtering: DHCP, NetBios, NBT, Mac, IP Packet Filtering, IP-Subnetwork range blocking, Selective handling of specified IP address, Detection of IP address collision
Alert when traffic/CPU load threshold reached
Multicast/broadcast flooding prevention
Secure Network: DoS prevention
IEEE 802.1p, IEEE802.1Q, IEEE802.1D
Rate Limit: @ 1Mbps (100M port)
Ingress Traffic Policing per flow/packet
VLAN, Multi VLAN, STP, RSTP, IGMP snooping & query
Max. 128 ACL for QoS standards and filtering
IGMP v1/v2, IGMP Snooping, IGMP Snooping Proxy Reporting supported
SNMP trap for up/down linking and system initialization
CLI, Telnet, Syslog, SNMP I/II, RMON, Port Mirroring
OS upgrade with TFTP or FTP
IPv6 support
Backup(switch-over) upon AC power failure
Over-charge and over-current prevention for battery
Protection from voltage fluctuations for battery
Battery charger included as part of the device/unit(4.5AH battery not incl.)
Seamless failover to DC upon AC going down
Shutting off the switch if Battery is powering the switch and voltage falls below 10.5V to ensure long life.
Circuit handles 100V to 300V |
|
E3208E Hardware Specification |
|
System Architecture
&
Console |
8 fixed 100Base-TX ports
(Auto-negotiation, Auto-Sensing, Auto MDI/MDIX)
1 Fixed Uplink
EPON 1 port
RS-232C Serial Console Port (RJ-45 type) |
|
Physical Dimension |
268 x 44 x 128 mm (W x H x D) |
|
Environment Conditions |
|
Power |
AC |
|
Input power & frequency |
110~220 VAC / 50~60 Hz |
|
Power consumption |
Max. 16.9W |
|
Operating temperature |
0℃~ 50℃ |
|
Storage temperature |
-20℃~ 60℃ |
|
Performance |
|
Switching Fabric |
12.8Gbps non-blocking |
|
Throughput |
1.19Mpps wire-speed L2 Switching |
|
Capacity |
|
MAC Address |
Up to 16K MAC Management |
|
VLAN |
Up to 256 VLAN (VLAN ID range 1~4094)
Private Edge VLAN, 8021.Q Tagged-VLAN
Link Aggregation (802.3ad): 8 group, Max 8 port/group |
|
Services and Features |
|
Filtering,
Security &
QoS |
IEEE 802.1p QoS, Diff-serv support, Congestion Management
Filtering: Mac address, Netbios, NBT, Mac Address Count Limit, Broadcast Storm, selective handling of specified IP address, IP Packet filtering, DoS Attack Prevention
Subscriber Traffic control by ACLs (Access Control Lists)
Queue: 8, SPQ, WRR, WFQ
Service differentiation for Control Packet (Ping, Telnet, SNMP, FTP, TFTP, etc) |
|
Management |
SNMP v1/v2, RMON, MIB-I/II, log flash, Subscriber (Block/unblock),
Last Mac Management, Remote S/W Upgrade with TFTP or FTP, Telnet, Port Mirroring, CLI, Syslog, Access level control for administrator
Radius, TACAS+, Remote power reset, Auto-reset(software diagnosis) |
|
Functions |
STP(802.1D), RSTP(802.1w), Self-Loop controlled
Storm-control (L2DLF,Broadcast,Multicast),
CPU Flood-Guard (pps control), CPU Filter(IP+TCP/UDP PORT NO)
NTP (Network Time protocol) Client |
|
Multicasting Protocol |
IGMPv1/v2,
IGMP snooping, 255 snoop Table, IGMP query, IGMP /Leave Suppression, IGMP Fast Leave, IGMP Static Join, IGMP proxy reporting
IGMPv3 aware |
|
Support IPv6 |
|
IPv6 Multicast Protocol |
MLDv1
MLD snooping, 255 snoop Table, MLD query, MLD Report/Done Suppression, MLD Fast Leave, MLD Static Join, MLD proxy reporting
MLDv2 aware |
|
Etc |
Classification: IPv6 header field
Configuration: IPv6 address and IPv6 default gateway |
|
Standards |
|
IEEE Standards |
802.1D Spanning Tree Protocol
802.1w RSTP
802.1p Priority Control
802.1Q VLAN
802.3 10Base-T Ethernet
802.3u 100Base-X Fast Ethernet
802.3x Flow Control
802.3ad Link Aggregation |
|
IETF Standards |
RFC 768 UDP
RFC 791 IP
RFC 903 TCP
RFC 1112 IGMP
RFC 2236 IGMP v2
RFC 2710 MLD v1 |
|
Management Standards
&
MIB |
RFC 783 TFTP
RFC 854 Telnet
RFC 1157 SNMP v1
RFC 1213 MIB-I I
RFC 1493 Bridge-MIB
RFC 1757 RMON-MIB
RFC 1902 SNMP v2
RFC 1907 SNMP-MIB
RFC 1643 Ethernet-like Internet MIB | |

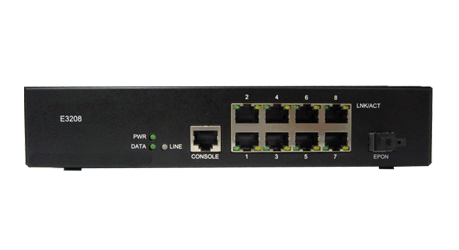

ONU E3208E
