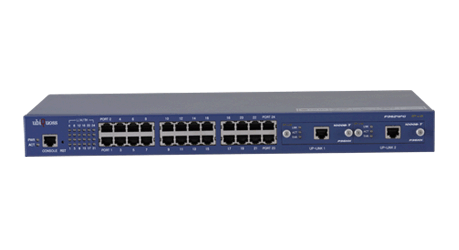

ONU P3624FG

P3624FG is an L2 switch devised as a GEPON MDU providing FTTx broadband multimedia service. With its rack mount design and ease of installation, the P3624FG provides a cost effective way in supporting broadband connection to end users. When the switch is equipped with EPON(passive optical network) expansion module, the reach distance of uplinks can be from 10Km up to 20Km. Besides the PON expansion module P3624FG can also have optional 2-port 1000BASE-X module or optional 1000BASE-TX for the active optical network connectivity. P3624FG can have twenty-four 10/100base-TX (UTP) ports as its service interface toward end users.

The qualities of service features facilitate the deployment of triple play services such as VoIP, IPTV, and high-speed internet access as much as desirable. All ports of P3624FG switch support full duplex communication. B

P3624FG adopts a high speed non-blocking switch fabric. This chipset makes internal delay as little as possible by processing the arriving packets in parallel manner. And it maximizes data integrity through Store-and-Forward switching method. In other words every packet that arrives at any port will be stored in the buffer of the port and checked up for integrity before transferred to destination port. Therefore it can prevent some data error from being spread over the network.

P3624FG supports IPv6, hardware-based bandwidth management and Quality of Service functionality, which enables corporate users and ISPs to provide differentiated internet services in the environment of next generation network.

Ÿ  Up to 24 10/100Base-TX ports

Ÿ  2 Option Module Slots: GEPON module along with 100Base-FX, 1000Base-Tx and 1000Base-X Power : AC/DC

Ÿ  12.8 Gbps Non-Blocking Switch Fabric

Ÿ  Max 6.5 Mpps L2 Switching, 64MB Main Memory, 16MB Flash Memory

Ÿ  Up to 16K MAC Address Support for Switching

Ÿ  Up to 256 VLANs Support

Ÿ  Filtering : DHCP, NetBios, NBT, Mac, Broadcast Storm, IP Packet Filtering, IP-Subnetwork range blocking, Selective handling of specified IP address, Detection of IP address collision

Ÿ  Secure Network : DoS prevention, Warm virus Filtering

Ÿ  IEEE 802.1p, IEEE802.1Q, IEEE802.1D, IEEE802.3x

Ÿ  Rate Limit : @ 1Mbps (100M & Gigabit port)

Ÿ  Egress Traffic Shaping (Rate Limit) per Port

Ÿ  Ingress Traffic policing per flow/packet

Ÿ  VLAN, Multi VLAN, STP, RSTP, IGMP snooping & query

Ÿ   Port Trunking, Link Aggregation(802.3ad), Port enable/disable, Stacking

Ÿ   TFTP, CLI, Telnet, Syslog, SNMPⅠ/Ⅱ, RMON, Port Mirroring.

Ÿ  IPv6 Enabled
